COUGAR
Корпуса

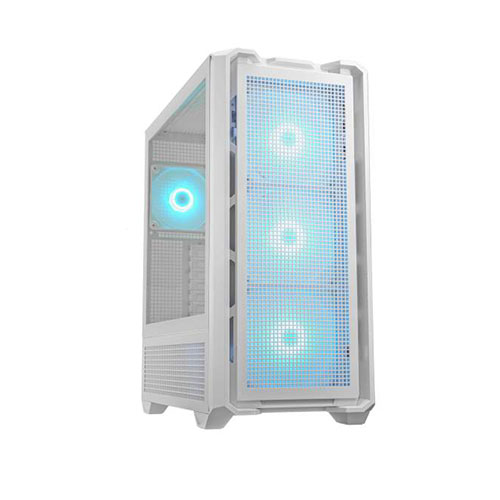

Product Name MX600 MINI RGB / MX600 MINI RGB (White)
Case Form Factor Mini Tower
Motherboard Type Mini ITX / Micro ATX
Dimensions (WxHxD) 232 x 445 x 456 (mm)
9.1 x 17.5 x 18 (in)
I/O Panel Type C Gen 2 x 1, USB 3.0 x 2, 4 Pole Headset Audio Jack & RGB Button
3.5\" Drive Bay 2
2.5\" Drive Bay 1+2 (converted from 3.5\" drive bays)
Expansion Slots 5
Cooling Fan Support Front 160mm x 2
Top 120mm x 3 / 140mm x 2
M/B Side 120mm x 2
PSU Shroud 120mm x 2
Rear 120mm x 1
Pre-installed Fans Front 160mm ARGB PWM fan x 2
Rear 120mm ARGB PWM fan x 1
Speed 160mm ARGB PWM fan: 400-1200 ± 10% RPM
120mm ARGB PWM fan: 500-1400 ± 10% RPM
Connector 5V 3 Pin (ARGB)
4 Pin PWM (Fan)
Maximun Number of Fans 10
Water Cooling Support Top *360mm / 280mm / 240mm / 140mm / 120mm
M/B Side *240mm / 120mm
*Please choose either top or M/B side to install a radiator.
Rear 120mm
PWM and RGB hub Sync with M/B Yes
Max. Graphics Card Length 380 (mm) / 15 (in) (Only fans at the M/B Side)
255 (mm) / 10 (in) (Radiator with fans at the M/B Side)

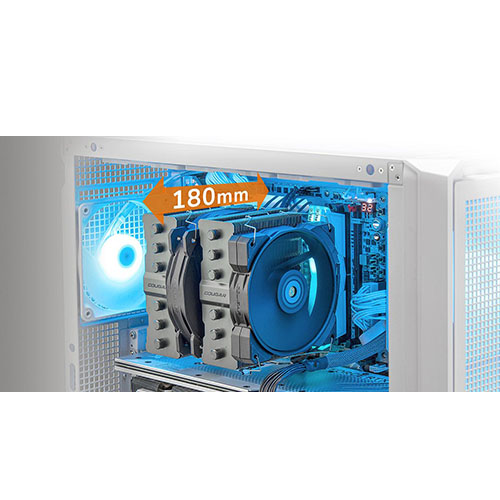

Max. CPU Cooler Height 175 (mm) / 6.9 (in)
Max. PSU Length 180 (mm) / 7.1 (in)
"
